Description:

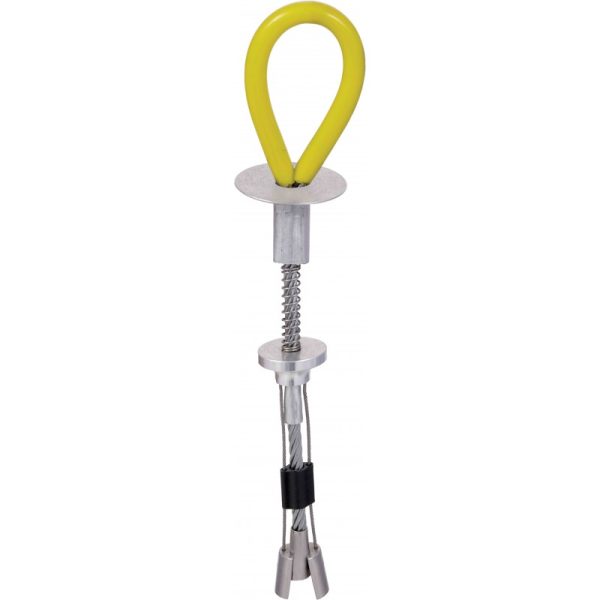

The IN LOCK-1 concrete anchor is a compact and quick-install anchorage solution designed for use in concrete structures. It features a pressure button mechanism that securely wedges the anchor into place, allowing for fast and efficient installation.
Key Features
• Designed for installation in concrete structures
• Quick installation using pressure button locking system
• Requires 20 mm diameter hole with 110 mm depth
• Lightweight and easy to handle
• Durable construction using aluminium, steel and stainless steel
• Secure anchorage through mechanical expansion
Technical Specification
• Minimum Breaking Strength: 12 kN
• Net Weight: 0.150 kg
• Material: Aluminium, Steel & Stainless Steel
• Compliance: EN 795:2012 Type B
Applications
• Concrete structures and surfaces
• Temporary anchorage systems
• Fall protection setups
• Construction and maintenance work
• Work at height in industrial environments
