Description:

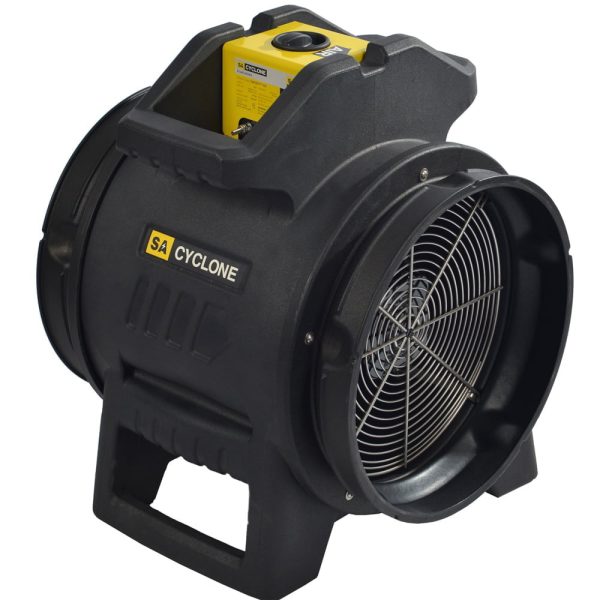

The SAF35 SA CYCLONE Air Mover is a high-power portable ventilation fan designed for the safe extraction of hazardous vapours, gases and dusts in demanding industrial environments. Built with a tough anti-static polyethylene housing, it delivers reliable performance in harsh conditions while remaining lightweight and easy to transport.
Key Features
• EX certified for hazardous environments
• Suitable for Zones 1 & 2 gases
• Configurable for 20 cm, 30 cm and 40 cm ducting
• High airflow performance
• Can be used as a blower or exhauster
• Lightweight, stackable and portable design
• Ergonomic carry handles and integral cable storage
• Tough, flame-retardant and chemical-resistant housing
• Operates on both 50Hz and 60Hz supplies
• Continuous runtime with thermal motor protection
Technical Specification
• Ingress Protection: IP66
• Operating Temperature: -40°C to +55°C
• Motor Protection: Thermal cut-out
• Fan Casing: Anti-static polyethylene
• Cable Length: 10 m
• Voltage Options: 110VAC / 230VAC
• Weight: 22 kg
Dimensions:
• 458 x 349 x 590 mm
• With adaptors: 458 x 498 x 590 mm
Airflow Performance
30 cm Version:
• 3319 m³/hr @ 50Hz
• 3712 m³/hr @ 60Hz
40 cm Version:
• 4559 m³/hr @ 50Hz
• 5179 m³/hr @ 60Hz
Certification
• EX II 2 G D
• Ex db eb h mb IIB+H2 T4 Gb
• Ex h mb tb IIIC T135°C Db
• INMETRO Certified
Applications
• Offshore platforms
• Oil refineries
• Vessels and tanks
• Confined spaces
• Chemical plants
• Shipbuilding and repair
• Utility environments
