Description:

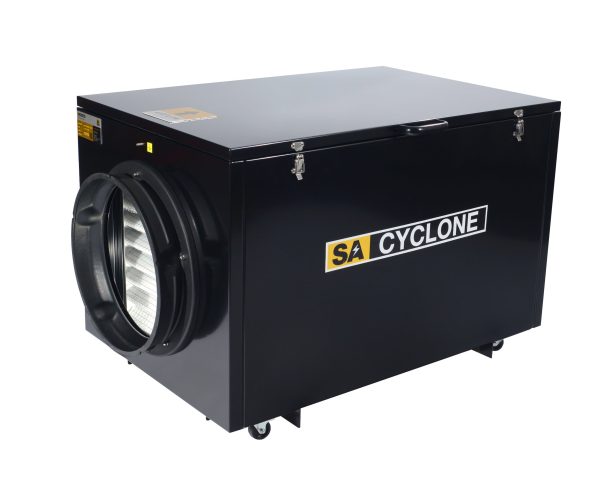

The SA CYCLONE Filtration Unit is a portable and modular filtration system designed to remove particles, odours and dust from extracted air in industrial and hazardous environments. Designed for inline use with ducting and air movers, it forms part of a complete temporary ventilation and filtration system when combined with the SA CYCLONE Air Mover and anti-static ducting.
Key Features
• Suitable for Hazardous Areas Zones 1 & 2
• Fully modular and configurable design
• Compatible with 30 cm and 40 cm ducting
• Designed for vapour and dust filtration applications
• Compatible with SA CYCLONE Air Mover
• Compatible with SA CYCLONE Anti-static Ducting
• Built-in airflow indicator for filter monitoring
• Heavy-duty stainless steel construction
• Hinged lid with safety stays for easy filter access
• Heavy-duty swivel wheels for easy manoeuvrability
• Weatherproof and suitable for extreme environments
Filter Configurations
Vapour System
• 1 x ATEX G4 Pre Filter
• HEPA Filter
• 9 x Carbon Filters
Dust – 2 Stage Standard
• 1 x G4 Pre Filter
• 1 x High Capacity F7 Dust Filter
Dust – 3 Stage Standard
• 1 x G4 Pre Filter
• 1 x F7 Dust Filter
• 1 x H14 HEPA Filter
Technical Specification
• Construction: Stainless steel with polymer duct connector
• Filter Size: 592 mm x 592 mm
• Ducting Compatibility: 30 cm or 40 cm
• Free Airflow (30 cm): 2500 m³/hr @ 340 Pa
• Free Airflow (40 cm): 2500 m³/hr @ 300 Pa
• Dimensions: 1150 x 730 x 740 mm
• Weight (without filters): 50 kg
• Weight (with filters): 100 kg
Applications
• Confined space ventilation
• Vessel entry operations
• Shipyards and industrial sites
• Dust and vapour extraction
• Hazardous area air filtration
• Temporary clean air ventilation systems
